AK-UR-24
Exclusive Features (AK-UR-24)
- Light weight ,compact and economical with user friendly LCD interface.
- 32-bit Advance Micro controller based LCD display unit with highly reliable SMD (Surface Mount Device) technology.
- Driven by most reliable embedded Operating system DMS OS with 24 bit high accuracy ADC(Analog to digital converter) measurement.
- Sensor is made up of high density Nylacast material which is corrosion and rust free.
- Successive test can be taken out without empty the beaker after every test upto 850 ml for 1000 ml and 1700 ml for 2000 ml of beaker respectively.
- Multiple printouts for 5ml/div and 10 ml/div.
- Sensor not Connected” message on modem display in case of not connection or loose connection of cable with modem port.
- LCD as well as LED indication of “beaker full” message above 850 ml for 1000 ml and 1700 ml for 2000 ml of beaker respectively.
- Memory saving of last graph in case of power failure.
- Funnel and beaker are easy to clean and reusable.
- LX-310 Epson dot matrix printer.
- The uroflowmetry system is auto calibrated.
Technical Specification
- Line Voltage/Rated current/Frequency : 85 ~V 265V AC / 50mA / 50 or 60 Hz
- Power Consumption & Operating Temp : Below 10 Watt & O°C to 55°C
- Maximum Micturition time : 60 Sec Normal, 300 Sec Extended.
- Maximum Capacity for Single Micturition : 1000ml/2000ml
- Automation Graph Compression : Above 50 Sec up to 300 Seec
- Repeat Copy : Selected in Two Mode 5 ml/10 ml per Second
- Sensor : Precise Strain Gauge Technology
- Dimension : 151 mm x 116 mm x 196 mm (w x h x d)
- Accuracy : +/- 5% voided volume in Reading | +/- 2% voided volume in Full range
Accessories
|
|
Accessory— |
|

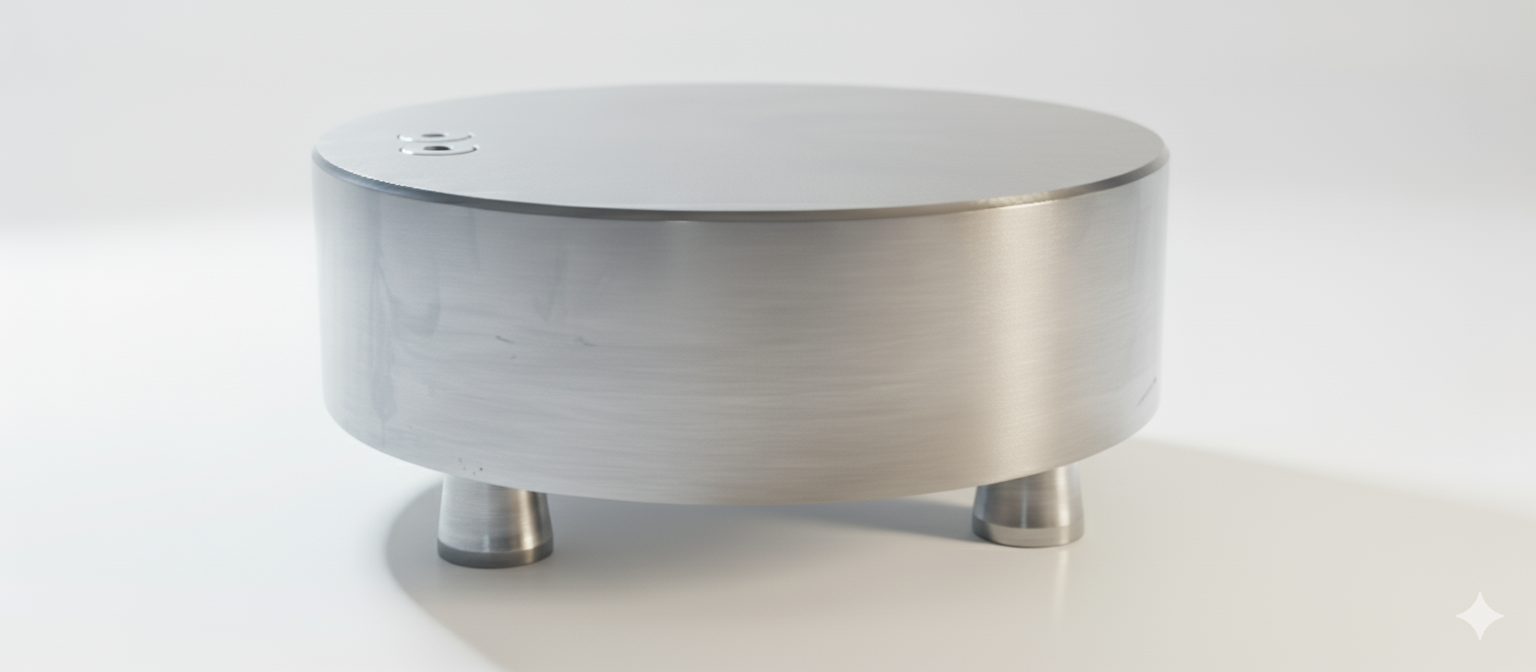

Weight Base TransducerIt is a highly accurate, piezo resistive, and cost-effective digitally controlled weight-based flow transducer. |
|

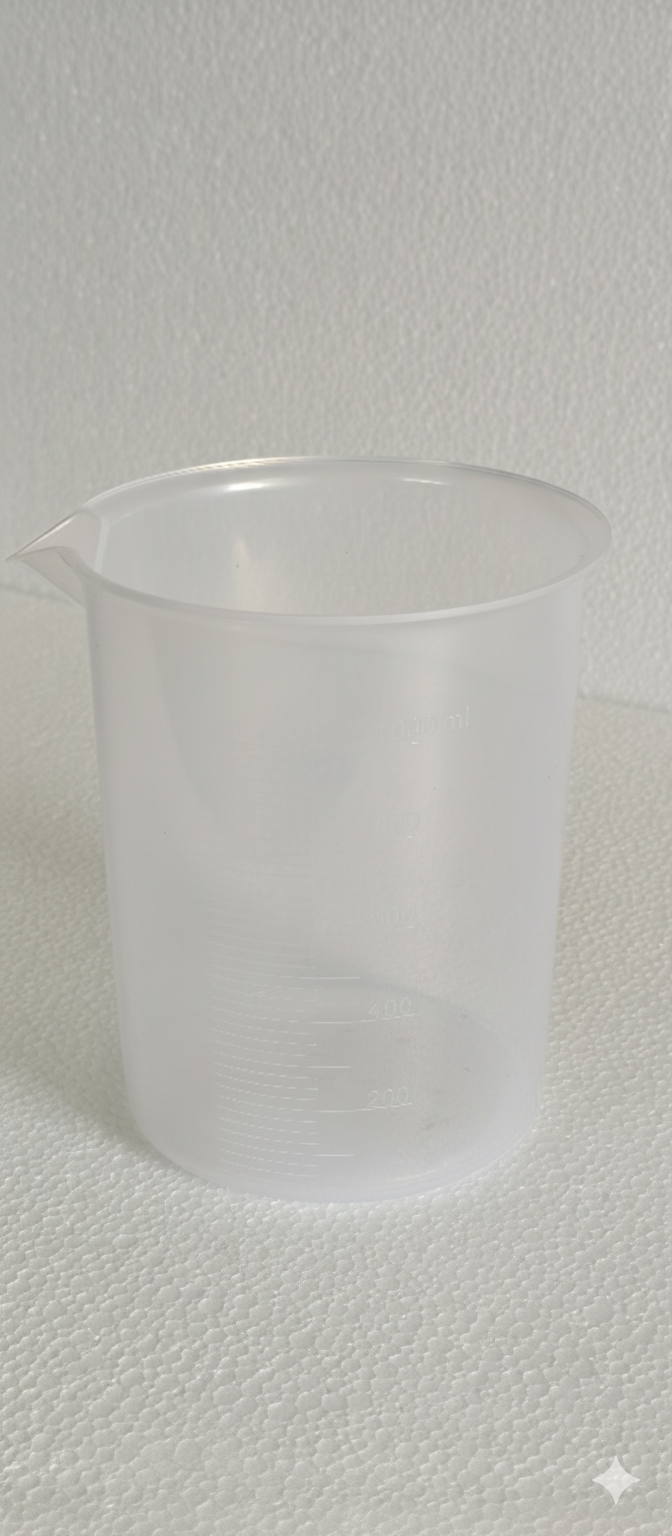

BeakerThe duly calibrated urine collection beaker is made of special-grade, transparent plastic which can be easily placed below the micturition chair. This urine collection beaker is reusable and has a maximum capacity of 2000 ml. |
|
Chair With Funnel & Beaker
|
|

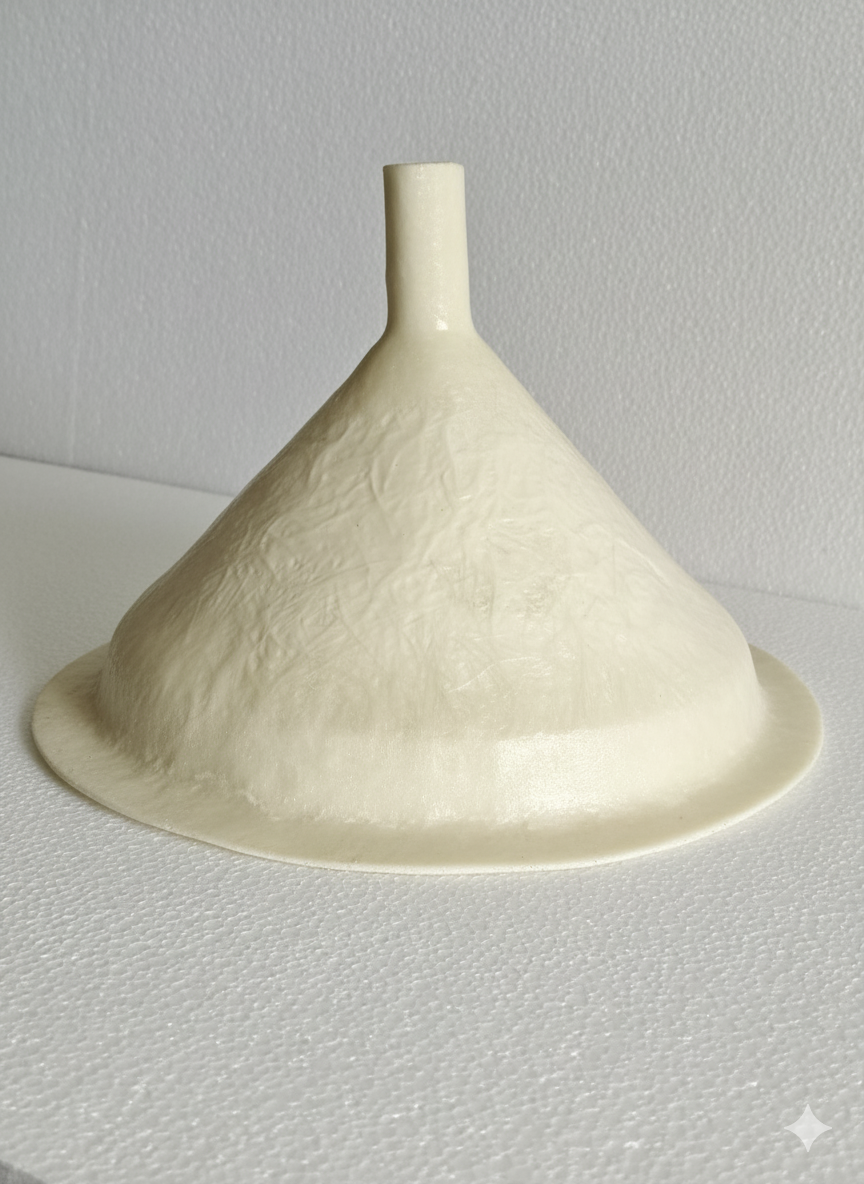

Funnel— |
|

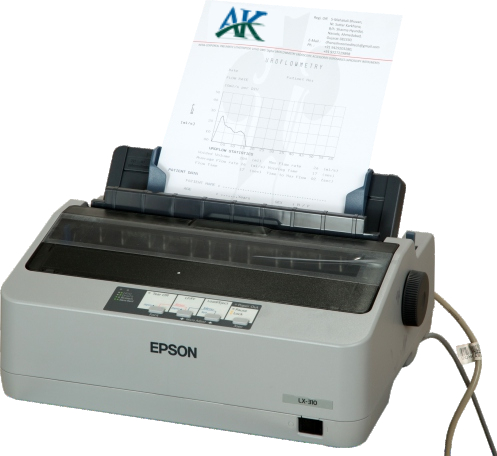

PrinterDot-matrix printer makes the device user-friendly and more economical as compared to conventional thermal printers. |
Line Voltage/Rated current/Frequency : 85 ~V 265V AC / 50mA / 50 or 60 Hz
Power Consumption & Operating Temp : Below 10 Watt & O°C to 55°C
Maximum Micturition time : 60 Sec Normal, 300 Sec Extended.
Maximum Capacity for Single Micturition : 1000ml/2000ml
Automation Graph Compression : Above 50 Sec up to 300 Seec
Repeat Copy : Selected in Two Mode 5 ml/10 ml per Second
Sensor : Precise Strain Gauge Technology
Dimension : 151 mm x 116 mm x 196 mm (w x h x d)
Accuracy : +/- 5% voided volume in Reading | +/- 2% voided volume in Full range
